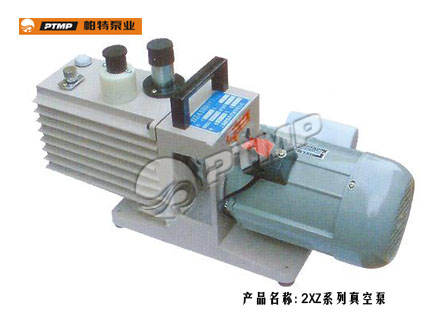

2XZ Double-stage Rotary Vane Type Vacuum Pumps

product class:Vacuum pump series

product name:2XZ Double-stage Rotary Vane T....

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

2XZ series the vacuum pump is a double class coupling the , function of its work be constituted partially by high pressure class and low-pressure class second, its inhalation the technique for vacuum for air for and vacuum equipments connect, while revolving air in the container the large quantity inhale withing eject, bing the equipments acquiring the vacuum, high pressure class row spirit valve closing, high pressure class entrance will transfering second degreely, and through second degree inhalation with ejecting vacuum equipments can acquiring certainly, that pump count to 6 ×s 10-²
