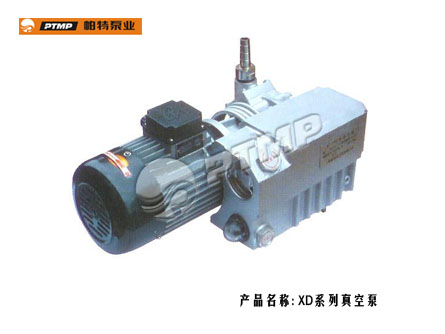

XD Single Stage Rotary Vane Type Vacuum Pumps

product class:Vacuum pump series

product name:XD Single Stage Rotary Vane Ty....

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

XD series it is high that vacuum pump is a construction of single class stalk type, function of its work turn soon, the low voice, is soon quick, and the efficiency is high, and the pump only need the air cooling, and have to defend to return the oil construction, and prevent to pump the oil to return into the quilt the system, and pump the inside to pack to have to line up the spirit filter, and validate to dissolve oil fog, and revolve equilibrium, vibration small, can at arbitrarily press the strong and next work.The technique of that pump number 2 × 10-2, already vacuum-packed of widespread suitable for use food, medicine, printing the machine paper transport, and the glass industry transport, the usage of the vacuum tongs, dry etc. unit.
