Product center

CQB magnetic drive pumps



 product class:Magnetic pump series

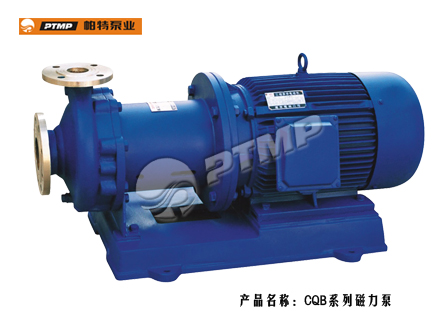

 product name:CQB magnetic drive pumps



Performance

 data

 Range of capacity      1.8~1450m³/h
Range of head  ≤133m
Medium temperature  -10℃~120℃
Ambient temperature   Up to 40℃
Maximum working pressure suction pressure+head of pump≤1.6MPa
Motor data

Supporting power



Voltage  380V
Frequency  50HZ
Rotating speed  2900r/min,1450r/min,970r/min
Protection class  IP44/IP54
Insulation class  B/F
Material pump body , pump cover,impeller  cast iron
Pump shaft  45 steel /stainless stell 3Crl3
Mechanical seal  silicon carbide,graphite,tungsten carbide,hard alloy and etc.

  • overview
  • feature
  • purpose
  • Model significance
  • Show case
  • data behavioral
  • Application area

    The wet parts of this pump are made of full stainless steel material to perform outstanding corrosion resistance to organicacid, organic compound, alkali, neutral solution and a great many of gases. Double helix carbon curveite bearing and hard alloy bearing are provide with good abrasion-resisting property to ensure the service life of product. It is an optimal pump for handing corrosive mediums without leakage

CQB50-32-160
CQB-Magnetic pump
50-Inlet diameter(mm)
32-Outlet diameter(mm)
160-Impeller diameter(mm)

MOREproducts with related Magnetic pump series
