CQ magnetic drive pumps

product class:Magnetic pump series

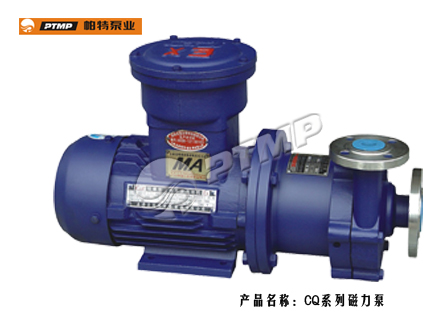

product name:CQ magnetic drive pumps

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

CQ type pump owns advantages such as simple structure, nice appearance, small body, little noise, reliable in operation, easy to operate and convenient to maintain. The magnetic drive part is mainly made of ferrite, and overflow part is made of stainless steel. Currently it is the no-leakage pump applied most widely

It is applicable in pumping chemical media such as acid and alkali liquids, oil, rare and valuable liquids, poisonous liquids and volatile liquids etc. It is especially applicable in pumping flammable and explosive liquids

40CQ-20
40-Inlet diameter(mm)
CQ-Magnetic pumps
20-Head 20(m)
